Product Description

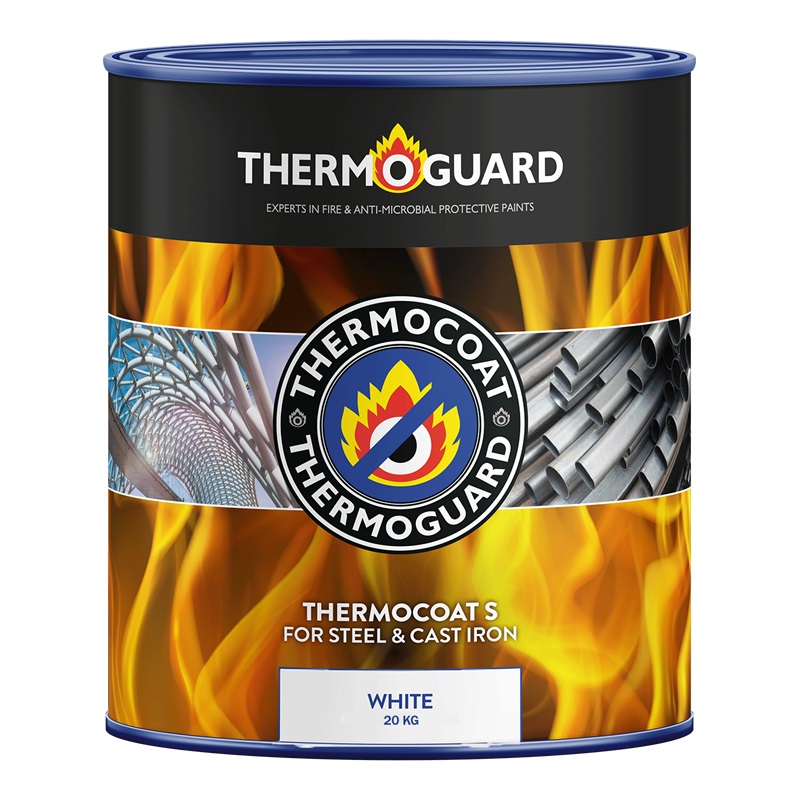

Thermoguard Thermocoat S is a intumescent solvent-borne coating for the protection of exterior steels and steels exposed during construction.
When applied in accordance with the correct film thickness schedule can achieve 30, 60, 90 and 120 minute protection.
Thermocoat is an intumescent paint system providing fire resistance to structural steel and cast iron of up to 90 mins with a minimum number of coats. A compatible decorative overcoat system ensures the system will enhance the building’s architectural and design features. Recomended for external exposed steel not subject to pooling water.
How do intumescent coatings work? The heat of a fire triggers a catalytic reaction, causing the expansion of an insulating char layer up to 50 times the paint thickness. This layer keeps the steel below its critical temperature, thus maintaining the structural integrity of the building.
Please Note: If certification is required, an intumescent enquiry form must be completed prior to purchase of the product, as this will ensure the correct quantity is applied to achieve the fire rating. The enquiry form is available to download from the ‘Data Sheets’ tab.
Thermocoat S Application
- Thermocoat S may be applied by brush, roller or airless spray.
To achieve the best finish in the shortest time, spray application
is recommended. Prior to application the contractor should
contact Thermoguard’s Technical Department and obtain a
basecoat application schedule. To assist correct application
in accordance with this schedule, a wet film gauge will be
supplied with the order. Further wet film gauges will be
provided on request.
- Maximum wet film thickness per brush coat – 600 microns
- Maximum wet film thickness per spray coat – 1000 microns
Drying and Recoating Times Under Normal Conditions
Brush/roller application
- Surface touch dry: minimum 2 hours, handle min 24hrs
- Recoat: minimum 6 hours
- Overcoating with Flame Retardant finish: minimum 24 hours
Spray application
- Surface touch dry: minimum 4 hours, handle min 24 hrs
- Recoat: minimum 12 hours
- Overcoating with Flame Retardant finish: minimum 48 hours
Application Conditions
Maximum Relative Humidity 80%
Minimum ambient temperature 4°C
Minimum Steel Temperature 3°C above Dew Point
Preparation

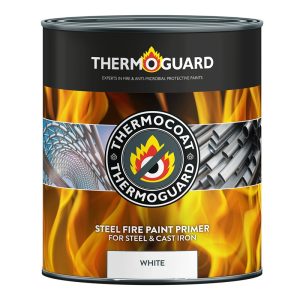

Steel and cast iron should be free from rust and millscale and primed with Thermoguard Steel Fire Paint Primer to 75 microns DFT ( or alternative good quality anti-corrosive primer compatible with intumescent paints) in accordance with manufacturer’s instructions. Treat galvanised surfaces with “T” wash/Mordant solution & prime with zinc phosphate or other primer for steel.
Application
Thermocoat S may be applied by brush, roller or airless spray. To achieve the best finish in the shortest time, spray application is
recommended. Prior to application the contractor should contact Palatine Paints to obtain a basecoat application schedule.
Maximum wet film thickness per brush coat – 600 microns
Maximum wet film thickness per spray coat – 1000 microns
Spray
Spray Equipment- Airless Spray Pump
Use equipment recommended by manufacturer for the application of high viscosity intumescent paints.
Filter size 30 mesh. 10mm hose 3/8” diameter with no whip end
Tip Size 321,323,421,423
Care should be taken to clean filters regularly. Cleaning should be undertaken with xylene/cellulose thinners.
Coverage
Prior to application the contractor should contact Palatine Paints to obtain a basecoat application schedule or follow on can guidance. Do not overspread as this will compromise the system and result in non-compliance and a failure to be certified.
Drying Times
Brush/roller application
Surface dry: minimum 2 hours, Handle minimum 24 hours
Recoat: minimum 6 hours
Overcoating with Flame Retardant finish: minimum 24 hours
Spray Application
Surface Dry: minimum 4 hours, Handle minimum 24 hours
Recoat: minimum 12 hours
Overcoating with Flame Retardant finish: minimum 48 hours
